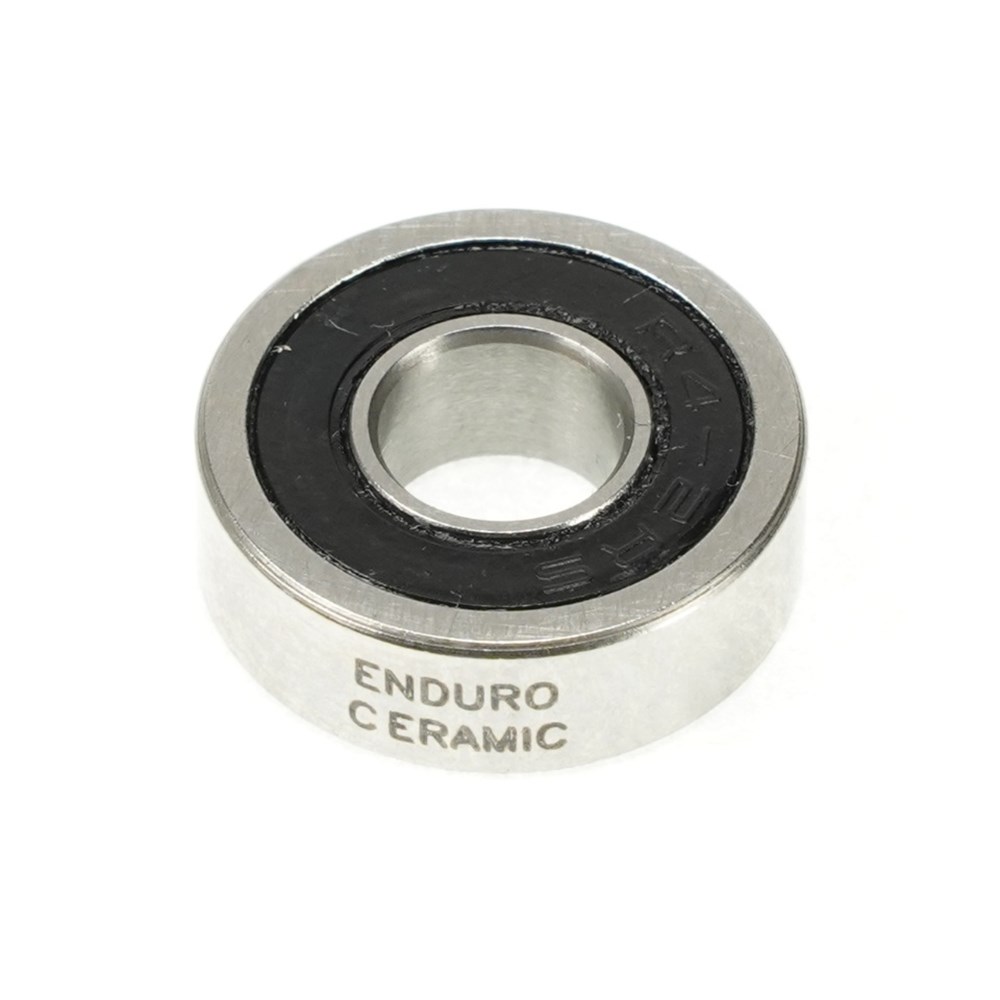

CH R 4 LLB - Ceramic-Hybrid, ABEC-5 radial bearing (C3 clearance) - 1/4 x 5/8 x 0.196 -
This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 high-Carbon Chromium alloy races, with grade 5 Silicon-Nitride Ceramic balls, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Kluber NBU52 ultra-smooth and sticky, water-proof grease. Si3N4 Ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing.
A radial bearing generally used as a hub bearing for some quick-release hub designs, as a pedal bearing, and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide superior protection against the elements.
Enduro Item Code: BB CH R 4 LLB-bx
