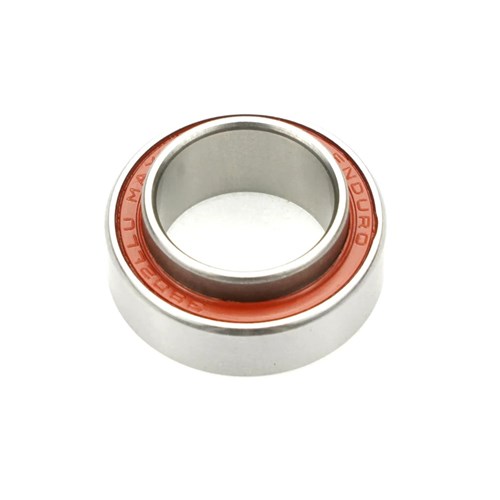

ENDURO 3802 LLU MAX E ABEC-3 RADIAL SUSP BRNG - 15 X 24 X 7/10MM

Product image for illustration purposes only & may differ from actual product

Product Code: EBSBBB3802MAXE
Barcode:
810191011323
RRP $32.95
Product Description


3802 LLU MAX E - MAX-Design, Double Row, Extended Race, ABEC-3, Radial Suspension Bearing - 15mm x 24mm x 7/10mm

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX bearings provide 35-40% more load capacity than standard radial bearings by employing with a special design where the maximum number of balls (full-complement) are inserted into the bearing. The race grooves are also deeper on these bearings to provide increased lateral support to counteract the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard Extra High Pressure Grease inside. The double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area.

This bearing has been used as a suspension pivot bearing by Pivot and Santa Cruz bikes.

The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.

Static load - 969lbf / 4.31kN
Weight - 10.51g
