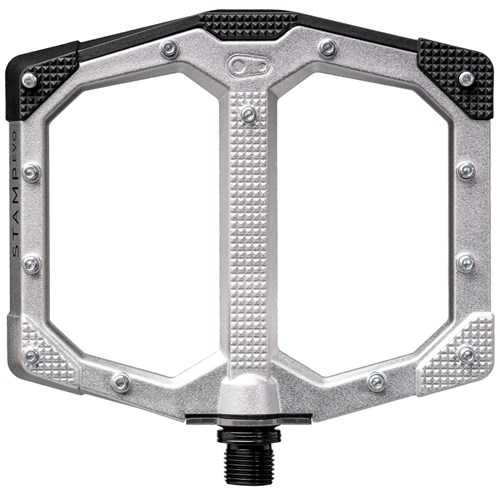

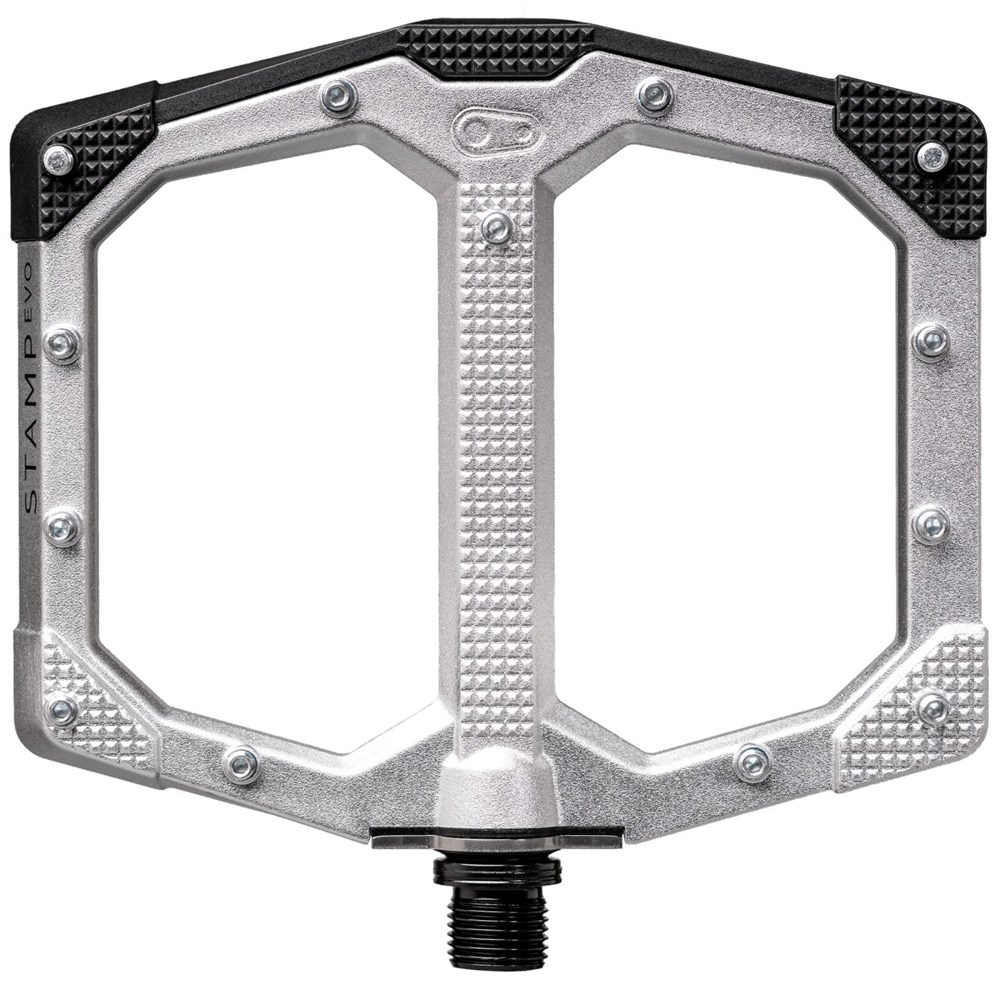

Stamp EVO

An extended platform for greater stability, less fatigue, and improved efficiency.

The Stamp EVO is 20% longer than our Stamp 7 pedal, enhancing support, stability, and comfort for all your flat pedal riding needs. Because climbing is part of every ride, the Stamp EVO is engineered to get more out of every pedal stroke, helping you ride longer and stronger.

The size-specific platform improves foot placement, while a thin, concave profile and 13 adjustable pins perside ensure secure grip. A two-material construction design focusses on durability in the aluminum bodywhile the replaceable composite bash guardshelp deflect rock strikes and minimize pedal hang-ups.

Built with a chromoly steel spindle and IGUS internals, available in two sizes to Match your shoe size, the Stamp EVO is ready to rip.

Features:

Optimal surface area
Minimal profile 11mm-15.5mm thin
Concave platform for secure foothold
13 adjustable pins per side for grip
Premium bearings & seal system
Grease port screw for easy maintenance
Stamp EVO Small recommended for shoe sizes: 5-10 (us) // 37-43.5 (eu)
Stamp EVO Large recommended for shoe sizes: 10-15 (us) // 43.5-49 (eu)
Extra pin kit & bashguards included

SPECIFICATIONS:

Body Material:Forged 6061-T6 Aluminum & Reinforced Nylon composite bashguard
Footprint:114mm x 133mmShoe Size:10-15 (US M) // 43.5-49 (EU)
Traction Pins:13 adjustable per side
Pin Length:5.6mm outer, 4mm inner, 3mm middle
Inner Bearing TYPE: Igus LL-glide bearing
Outer Bearing Type: Igus LL-glide bearing
Seal System:Premium V-Ring
Spindle Material:Forged SCM 435 Chromoly Steel
Max Rider Weight:No restriction
Weight:464g per pair
Warranty:5 years

CRANKBROTHERS PEDAL STAMP EVO LARGE SILVER

Product Code: 17227
