Product Description

Mallet Trail

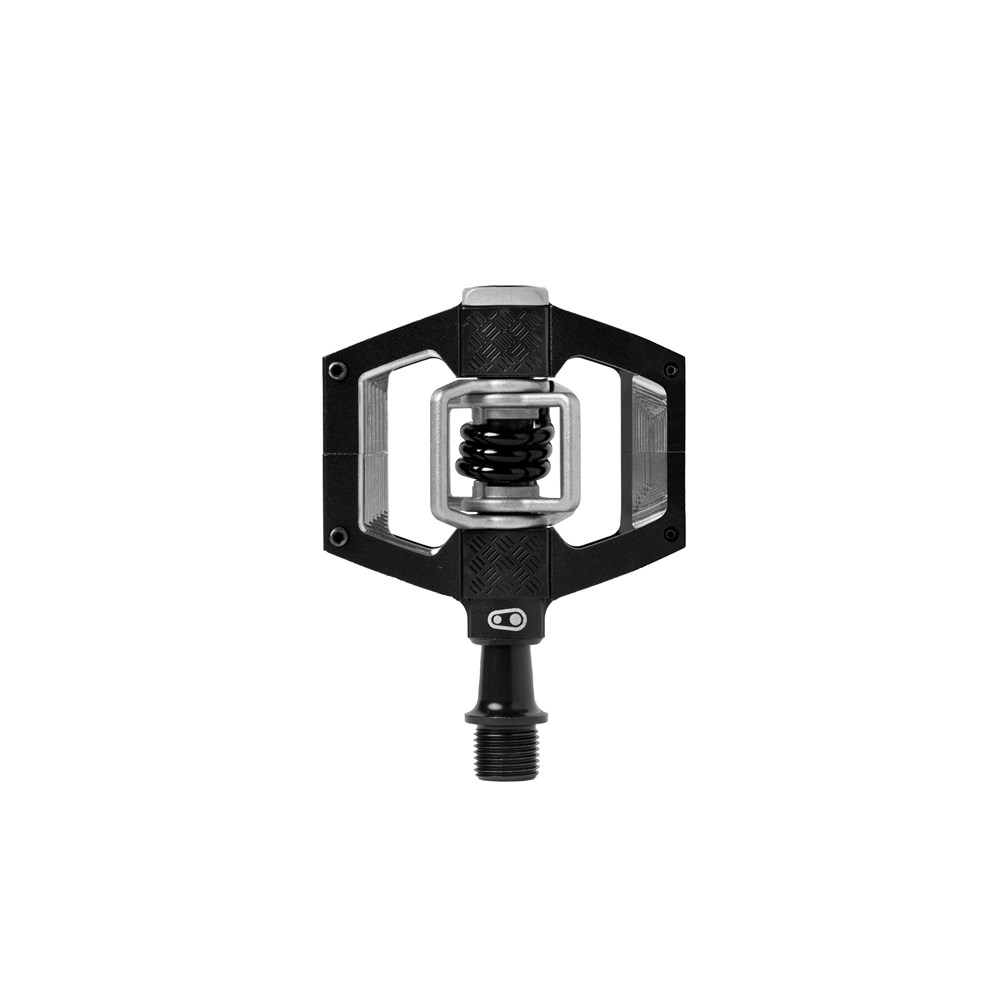

Full suspension or entirely rigid, upon a mountain top or deep in the woods, it’s up to you to define your trail. Our new Mallet Trail pedal fills the missing piece in our clip-in range, sitting perfectly between our Candy and Mallet E pedals. Equipped with a long spindle for stability and speed, two adjustable pins per side for added traction, and our eggbeater system with 4-sided entry and superior mud shedding, the Mallet Trail is ready to join you on your next adventure.

Features

Optimized platform size and surface for trail/gravel riding
Long spindle, 57mm q-factor for more shoe clearance and stability at speed
Integrated traction pad technology to customize and optimize the shoe/pedal interface
2 adjustable pins per side for grip
Hex alloy endcap for durability
4-sided entry / superior mud shedding
Customizable float & release angle

Specifications

Spindle material: forged scm 435 chromoly steel
Body material: 6061-T6 aluminium
Body dimensions: (LxW) 78mm x 74mm
Wing material: cast stainless steel
Spring material: 300 series stainless steel
Release angle: 15° / 20°
Max rider weight: no restriction
Q-factor: 57mm
Inner bearing type: igus LL-glide bearing
Outer bearing type: enduro cartridge bearing
Cleat: premium brass cleats with shims included
Weight: 344g
Warranty: 5 years

CRANKBROTHERS PEDAL MALLET TRAIL BLACK

Product Code: 16759
